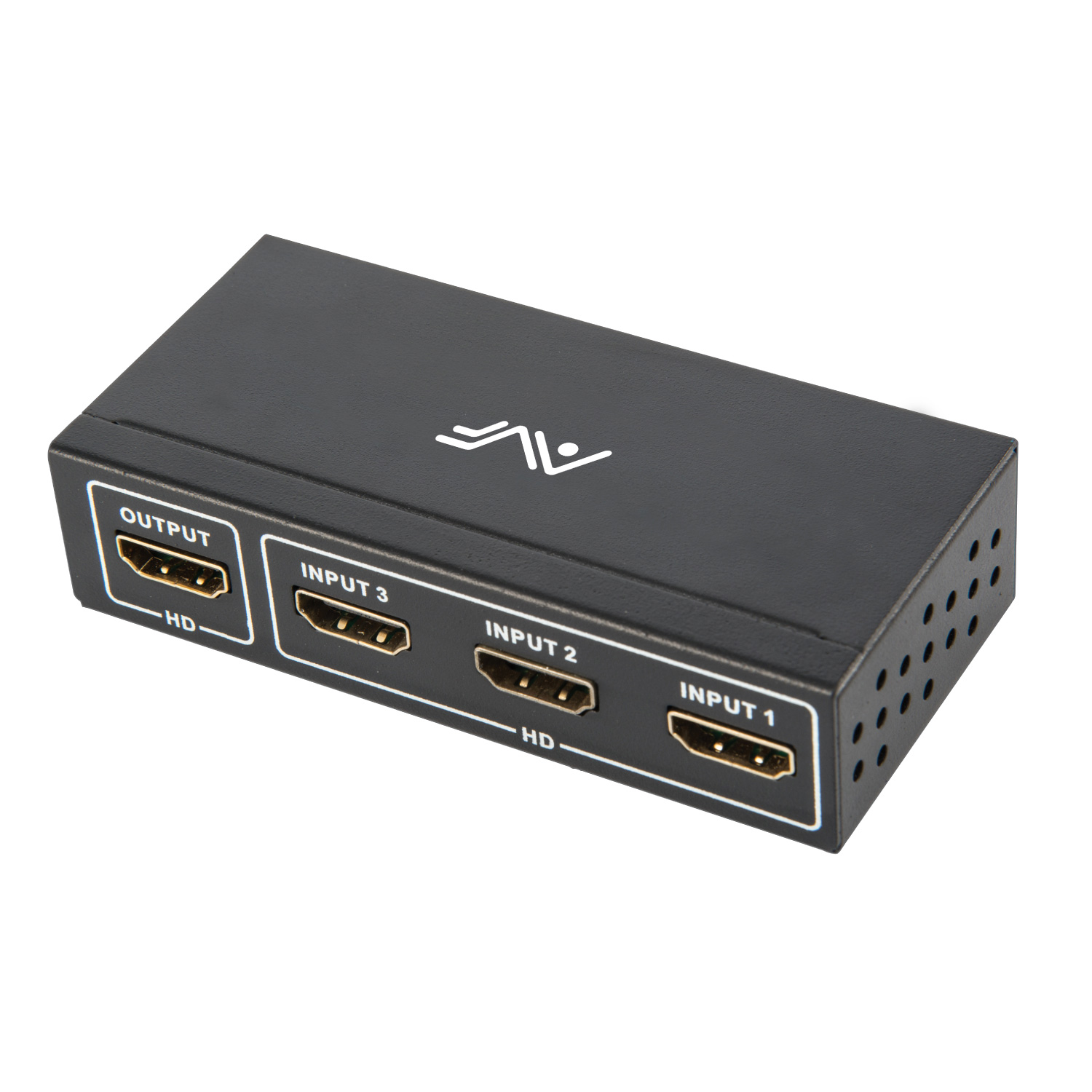

HDMI SWITCHER (Model: AHS103-4KX2K)
GALLERY
SPECIFICATIONS
| 1 | Model | AHS103-4KX2K |
|---|---|---|
| 2 | Input Port | 3 |
| 3 | Output Port | 1 |
| 4 | Source Port Connector | 19 pin HD (A Type) |
| 5 | Display Device Port Connector | 19 pin HD (A Type) |
| 6 | HDCP Compliant | Yes |
| 7 | Source Device Selectionr | Push button or IR remote control |
| 8 | Deep Colour | 36 bit |
| 9 | Single Link Range | 3840 x 2160 |
| 10 | HD Version | 1.4 |
| 11 | Bandwidth | Up to 340Mhz |
| 12 | Signal Speed | Up to 10.2 Gbps |
| 13 | Vertical Frequency Range | 60Hz |
| 14 | Power Consumption (Max.) | 2.5 Watts |
| 15 | Operation Temperature | 0 celcius to 70 celcius |
| 16 | Working Voltage | DC 5V |
| 17 | Power Adapter | 5V 1A |
| 18 | Net Weight | 0.13 kg |
| 19 | Product Dimension | 100 x 48 x 24.5 mm |
| 20 | PACKAGE CONTENT: | HD Switch |

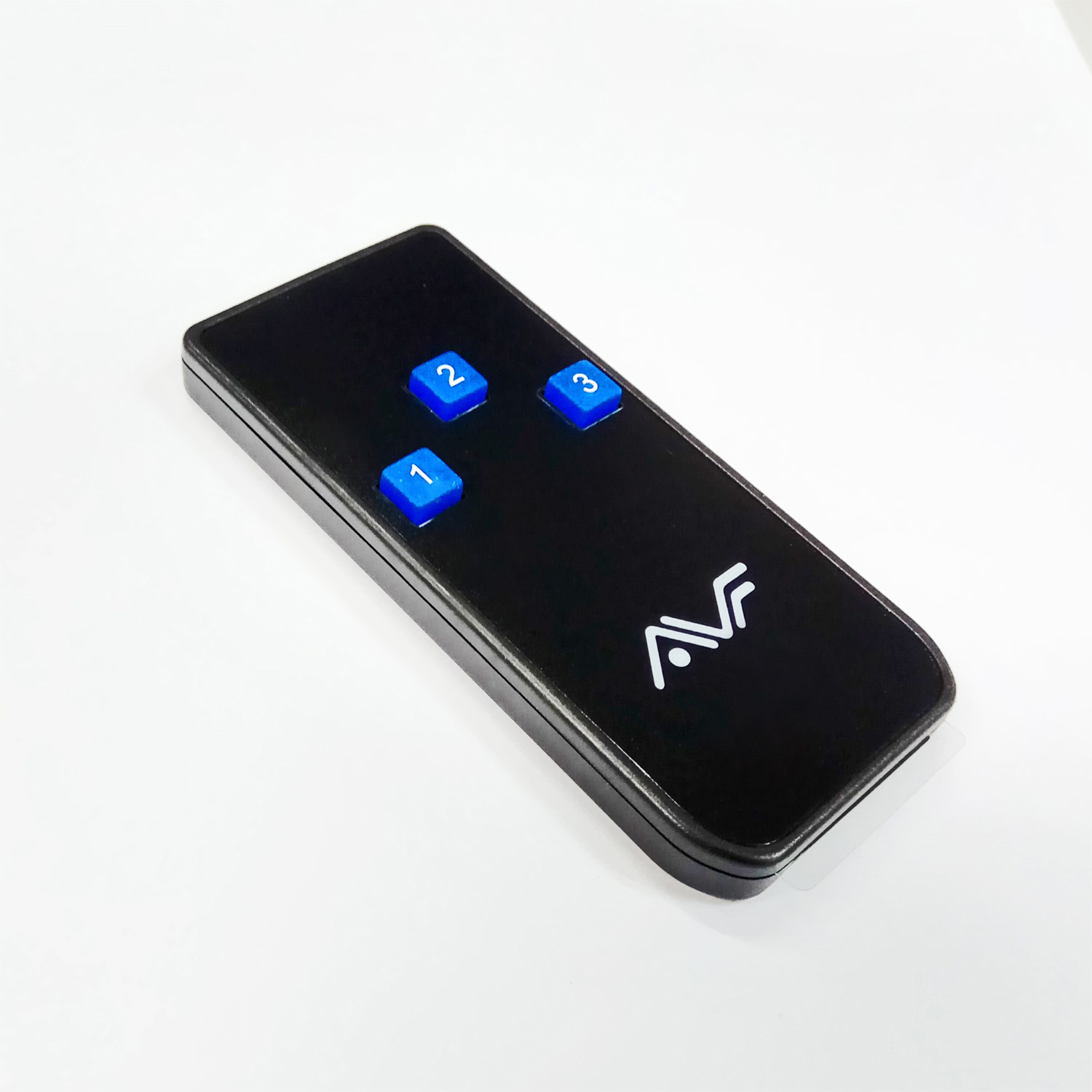

| IR Remote Control | ||
| 5V DC Power Supply | ||
| User Manual |
